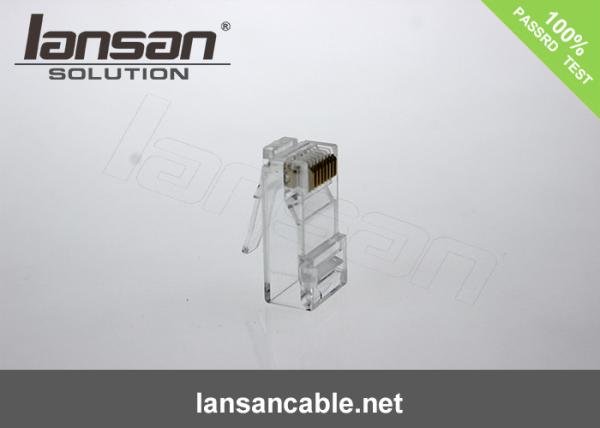

8p8c Gold Plated Cat5e UTP RJ45 Modular Plug
We offer modular Plugs in standard configuration terminate modular cords for patching or work area application, modular plugs can be terminated to the exact cable length in order to maintain a nearer, more organized installment, the plugs terminated twist pair cable with 22-26 AWG solid all plugs contracts have 50 micron inched of good plating over nickel.
SPECIFICATION
RJ45 Cat5E UTP Male Connector/ Patch Plug Category 6 &8P8C Gold plating: 3"-50u" over nickel
1. 8 pin x 8 conductor
2. Current Rating:1.5 amps
3. Voltage Rating:125vac
4. Insulation Resistance:500 MΩmin
5. Contact Resistance:30 MΩmax
6. Withstanding Voltage:AC 1000V RMS 50Hz or 60Hz 1 min
MECHANICAL
1. Insertion Force:2.2KG.F max
2. Retention Strength:7.7KG.F min between jack and plug
3. Durability:600 mating cycles min
MATERIAL
1. PC
2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3. Shield:0.20~0.25mm thickness brass with tin plated
4. Gold Plating:3u inch,6u inch,15u inch,30u inch,50u inch
ENVIRONMENTAL
Working Temperature:-40°C to 70°C
Competitive Advantage
- For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
- For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
- For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
- Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
